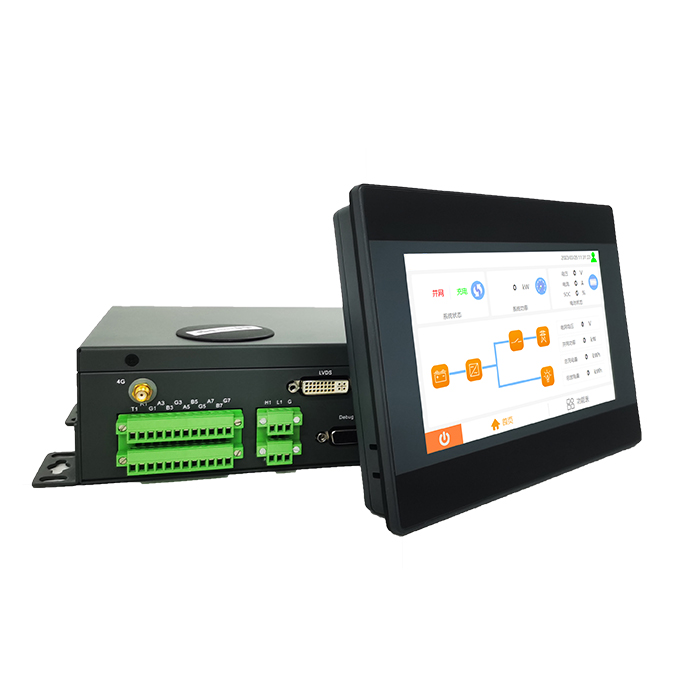

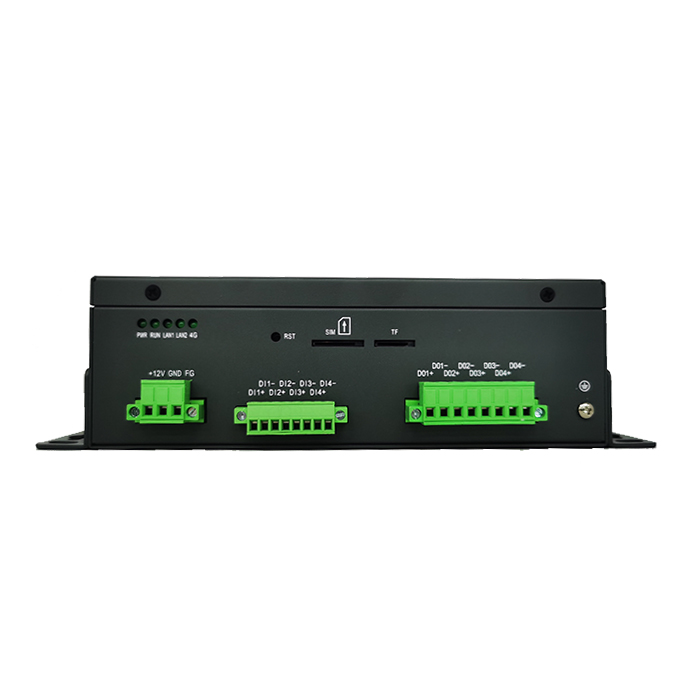

EMS Controller
Linux operating system
- Safe, efficient and reliable
Highly intergrated
- Ethernet, CAN,4G,RS485,RS232
- Support LVDS video output
High reliability
- All external interface are optical coupler/transformer isolated
Varied features
- Dynamic pressure regulation
- Peak-valley arbitrage
- Demand response
- Smoothing power fluctuation
PARAMETERS
CPU | Renesas GZ/G2L series microprocessor:dual-core A55@1.2GHz+M33@200MHz |
Memory | Default configuration 1GB DDR4 SDRAM |
Flash | Default configuration 8GB eMMC |
Expandable Storage | One Micro SD CARD（TF card） |
Mobile Communication | Supports China Mobile, China Unicom, and China Telecom 2 standard SIM card slots, support for external plug-in installation, hot-swappable |
WIFI | Supported |
Network | RJ45-0：adaptive fast Ethernet, standard RJ45 interface RJ45-1：adaptive fast Ethernet, standard RJ45 interface |
Multiple Serial Ports | RS232，optically isolated, output via phoenix terminal RS485，optically isolated, output via phoenix terminal |
CAN BUS | CAN-0：high-speed CAN-FD, output via phoenix terminal CAN-1：high-speed CAN-FD, output via phoenix terminal |
DI/DO | Digital input , output via phoenix terminal, external isolated optocoupler input dry contact Digital output，relay dry contact output, output via Phoenix terminal |
USB | Independent two-channel USB2.0 HOST Type A interface for inserting USB flash drives One-channel USB2.0 OTG Type C port for data interaction |
Debug Interface | 1 channel Debug debug interface, shared with RS232-0/RS485-0 |
Power | Input rated voltage, DC: 12V/24V, input range DC9V~28V, with reverse connection protection. Rated power: 20W |
Software Environment | Linux Kernel Version：5.10.83 GCC-8.3.0 QT：5.15.0 |
Operating & Storage Environment | Humidity: 5％~95％, non-condensing Operating temperature:-25℃~+65℃ Storage temperature:-40℃~+85℃ |
Download
EMS product data sheet
Details
PARAMETERS
CPU | Renesas GZ/G2L series microprocessor:dual-core A55@1.2GHz+M33@200MHz |
Memory | Default configuration 1GB DDR4 SDRAM |
Flash | Default configuration 8GB eMMC |
Expandable Storage | One Micro SD CARD（TF card） |
Mobile Communication | Supports China Mobile, China Unicom, and China Telecom 2 standard SIM card slots, support for external plug-in installation, hot-swappable |
WIFI | Supported |
Network | RJ45-0：adaptive fast Ethernet, standard RJ45 interface RJ45-1：adaptive fast Ethernet, standard RJ45 interface |
Multiple Serial Ports | RS232，optically isolated, output via phoenix terminal RS485，optically isolated, output via phoenix terminal |
CAN BUS | CAN-0：high-speed CAN-FD, output via phoenix terminal CAN-1：high-speed CAN-FD, output via phoenix terminal |
DI/DO | Digital input , output via phoenix terminal, external isolated optocoupler input dry contact Digital output，relay dry contact output, output via Phoenix terminal |
USB | Independent two-channel USB2.0 HOST Type A interface for inserting USB flash drives One-channel USB2.0 OTG Type C port for data interaction |
Debug Interface | 1 channel Debug debug interface, shared with RS232-0/RS485-0 |
Power | Input rated voltage, DC: 12V/24V, input range DC9V~28V, with reverse connection protection. Rated power: 20W |
Software Environment | Linux Kernel Version：5.10.83 GCC-8.3.0 QT：5.15.0 |
Operating & Storage Environment | Humidity: 5％~95％, non-condensing Operating temperature:-25℃~+65℃ Storage temperature:-40℃~+85℃ |
