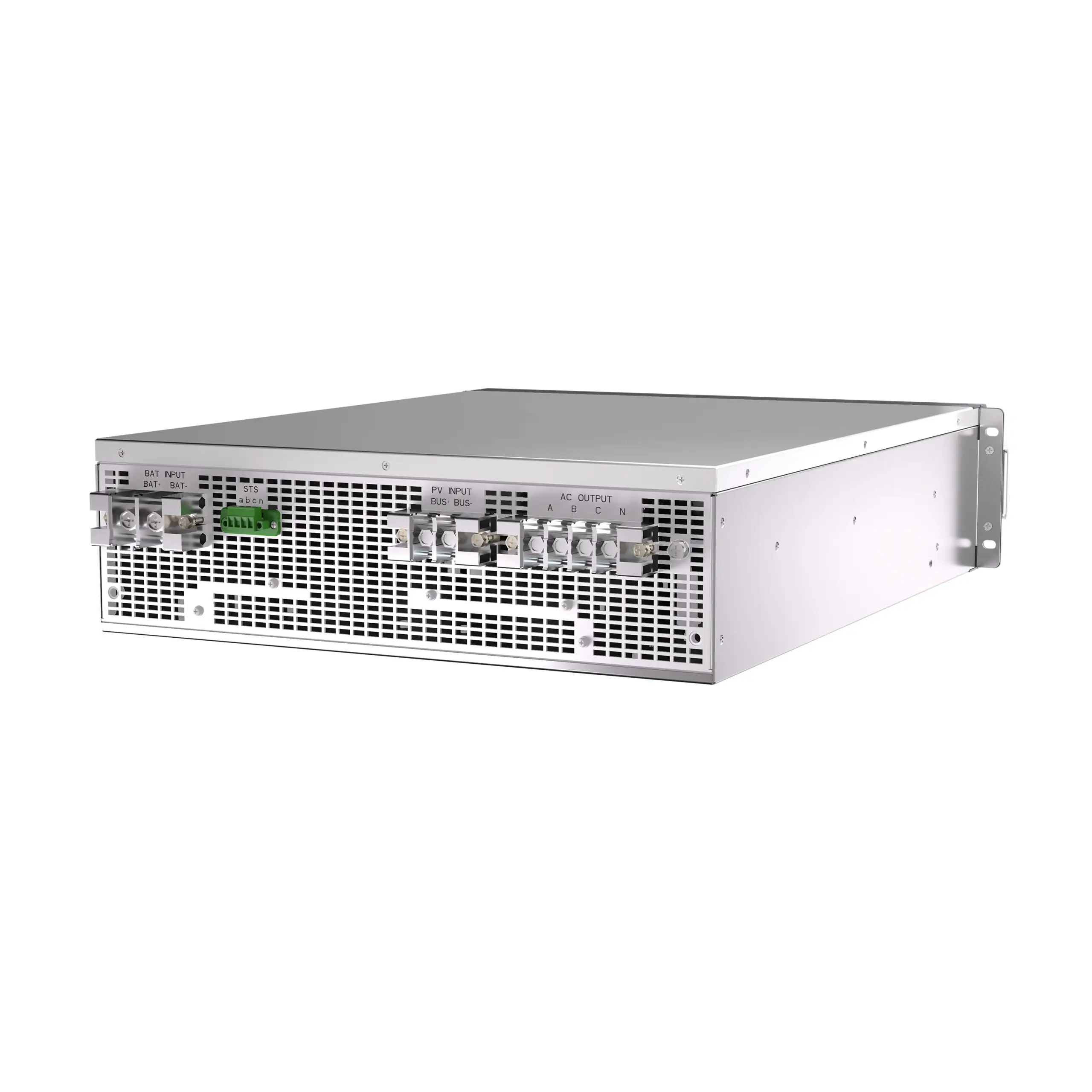

30kW Mars Series Wide-range PCS Module for C&I BESS

Mars-30KT-W

DC side

Max. DC voltage

880V

Min. DC voltage

150V

DC voltage working range

150~880V (340~880V full load)

Max. current

90A

AC side

Rated charge and discharge power

30kW

Max. charge and discharge power

36kW

Rated charge and discharge current

44A

Rated grid voltage

400V

Allowable grid voltage range

300~440V

Rated grid frequency

50Hz/60Hz

Total Harmonic Distortion Rate of Current

<3% (at rated power)

Power factor

>0.99

Power factor range

-1~1

Overload capacity

1.2Pn, last for 1 minute

Rated output voltage

400V

Voltage deviation

±2%

Voltage Total Harmonic Distortion Rate

＜3%(linear load)

Efficiency

Max. efficiency

97.20%

Protection

DC reverse polarity protection

Yes

AC short circuit protection

Yes

AC output overcurrent protection

Yes

Surge protection

Type II

Insulation resistance monitoring

Yes

Temperature protection

Yes

DC switch

Yes

General

Dimensions (W*H*D)

445mm*132.5mm*570mm

Weight

<31kg

Topology

Transformerless

Working temperature

-40~+60°C, full power operation at 45°C and below

IP level

IP20

Cooling method

Intelligent air cooled

Max. working altitude

<4000m ( derating above 3000m)

Standby power consumption

<10W

Characteristics

DC connector

OT terminal

AC connector

OT terminal

Display

LED+APP+Web

Communication mode

Ethernet,RS485,CAN
