360-720kW Split DC Fast Charging Station
Key features
- -40kW CLASS B modules in power cabinet.
- -Split charger for global applicatins according to IEC standards.
- -Optional CCS1, CCS2, CHAdeMO charging interfaces to meet the charging needs of vehicles with various international standards.
- -Dynamic star-ring power distribution, intelligent scheduling for charging each module.
- -Excellent exterior design and humanized design, making product easier for customer use.

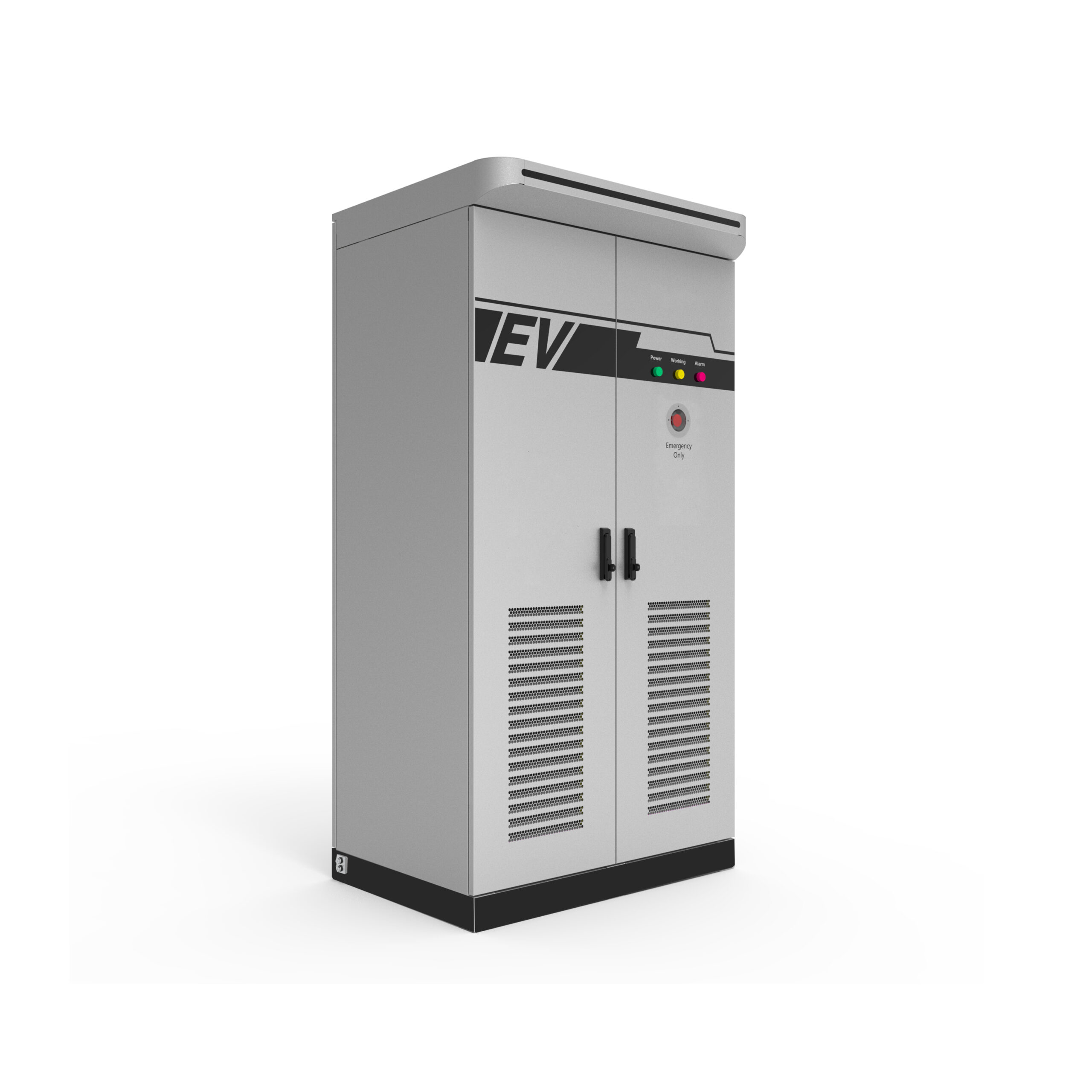

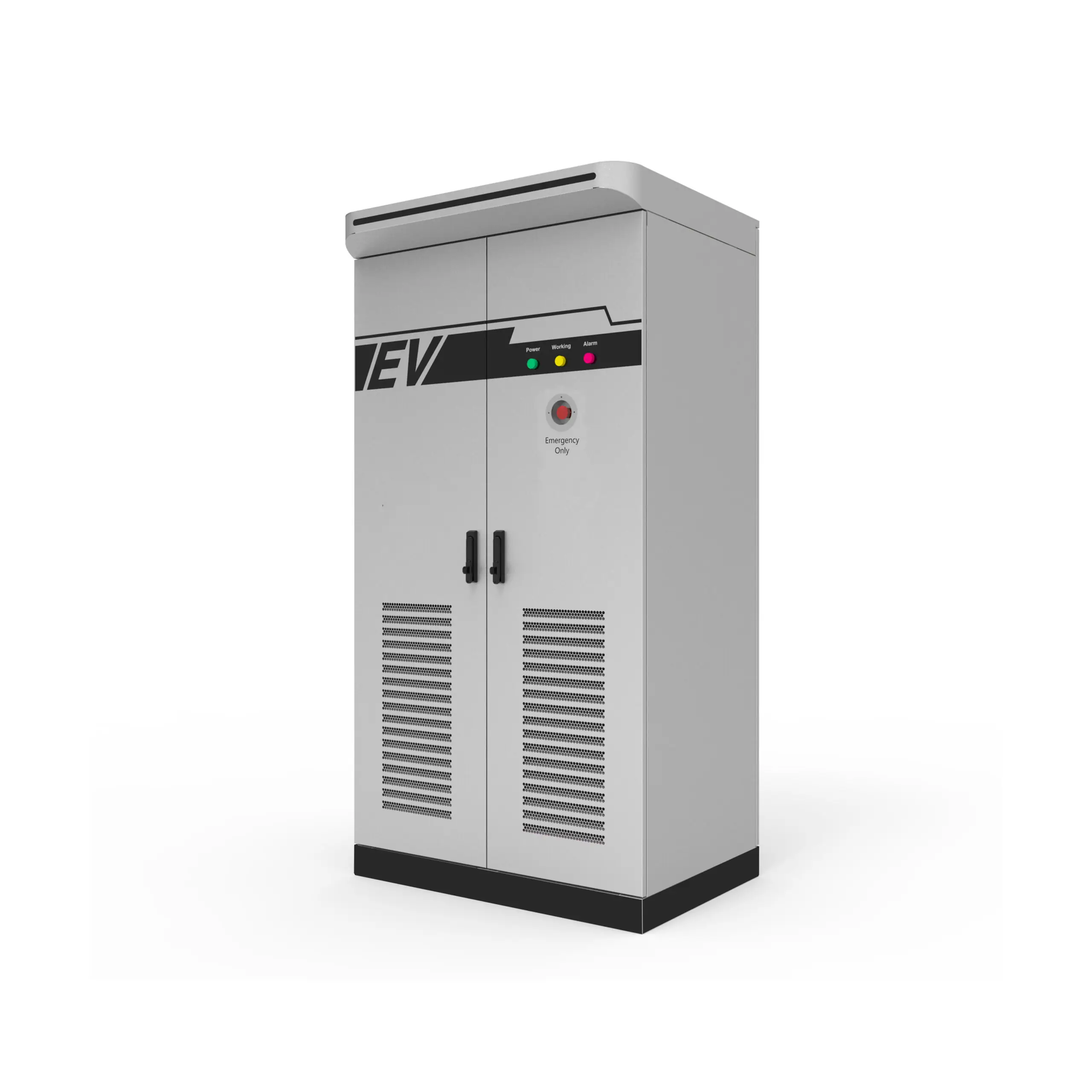

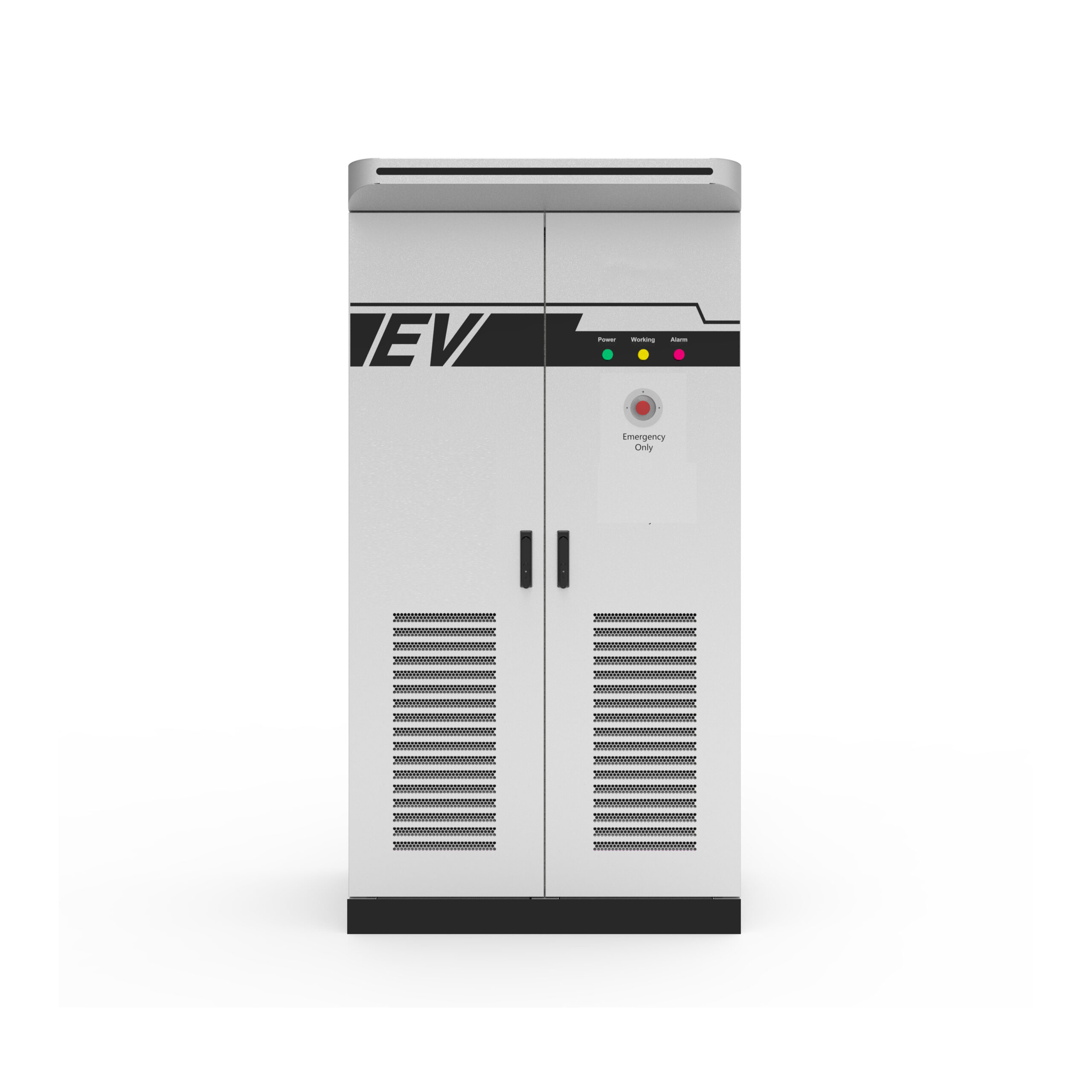

POWER CABINET
| Rated power | 360kW | ||
| Max number of access terminals | 8 | ||
| Input Voltage | 400VAC±10%,3P+N+PE | ||
| Ouput voltage | 200-1000Vdc | ||
| Output constant power range | 300-1000Vdc | ||
| Operating temperature | -30 ~ +50°C | ||
| Operating environment | Indoor or outdoor（IP54） | ||

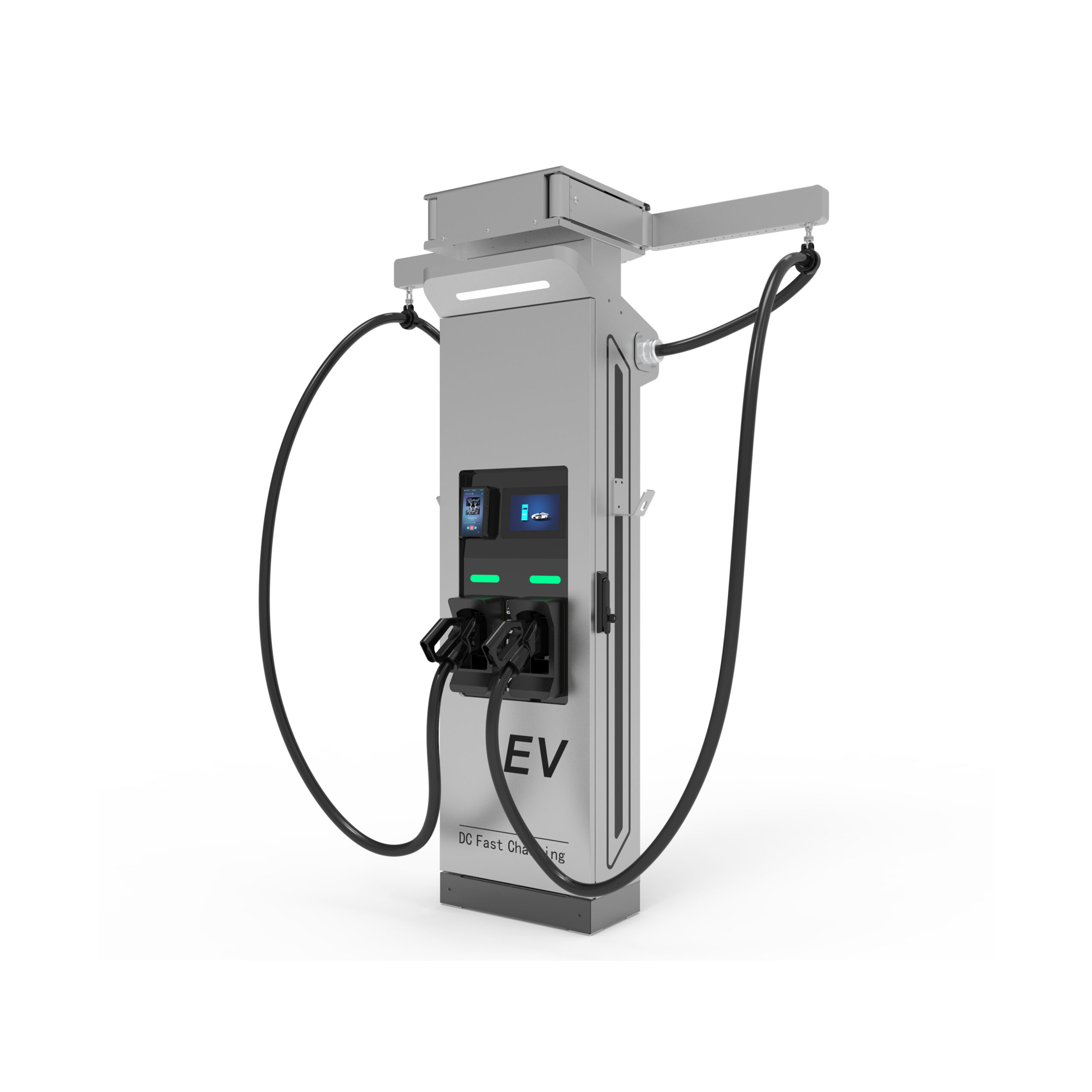

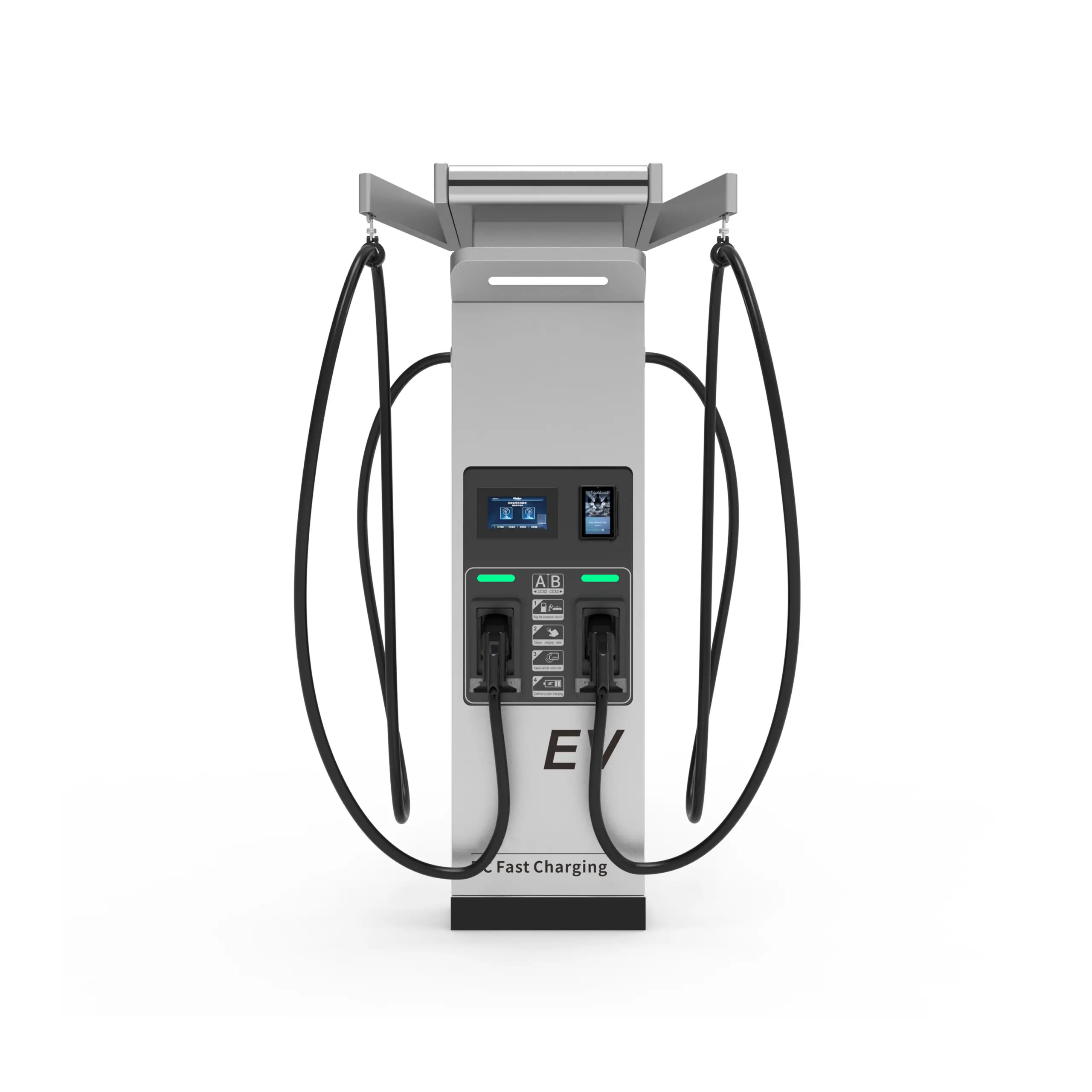

CHARGING TERMINAL
| Rated power | 300kW | ||
| Back-end protocol | Ethernet, 4G, OCPP 1.6J, OCPP 2.0（upgradeable） | ||
| EVSE | PLC(DIN70121:2014-12/ISO15118) | ||
| Output voltage | 200-1000Vdc | ||
| Constant power range | 300-1000Vdc | ||
| Plug type | CCS2+CCS2 | CCS2+CHAdeMO | CCS2+CCS1 |
| Max current per plug | CCS2：300A | CCS2：300A CHAdeMO：125A | CCS2：300A CCS1：300A |
| Operating temperature | -30 ～ +50°C | ||
| Operating environment | Indoor or outdoor（IP54） | ||
Download
360-720kW Split Type DC Fast Charger
Details
POWER CABINET
| Rated power | 360kW | ||
| Max number of access terminals | 8 | ||
| Input Voltage | 400VAC±10%,3P+N+PE | ||
| Ouput voltage | 200-1000Vdc | ||
| Output constant power range | 300-1000Vdc | ||
| Operating temperature | -30 ~ +50°C | ||
| Operating environment | Indoor or outdoor（IP54） | ||
CHARGING TERMINAL
| Rated power | 300kW | ||
| Back-end protocol | Ethernet, 4G, OCPP 1.6J, OCPP 2.0（upgradeable） | ||
| EVSE | PLC(DIN70121:2014-12/ISO15118) | ||
| Output voltage | 200-1000Vdc | ||
| Constant power range | 300-1000Vdc | ||
| Plug type | CCS2+CCS2 | CCS2+CHAdeMO | CCS2+CCS1 |
| Max current per plug | CCS2：300A | CCS2：300A CHAdeMO：125A | CCS2：300A CCS1：300A |
| Operating temperature | -30 ～ +50°C | ||
| Operating environment | Indoor or outdoor（IP54） | ||
