- Sorry, this product cannot be purchased.

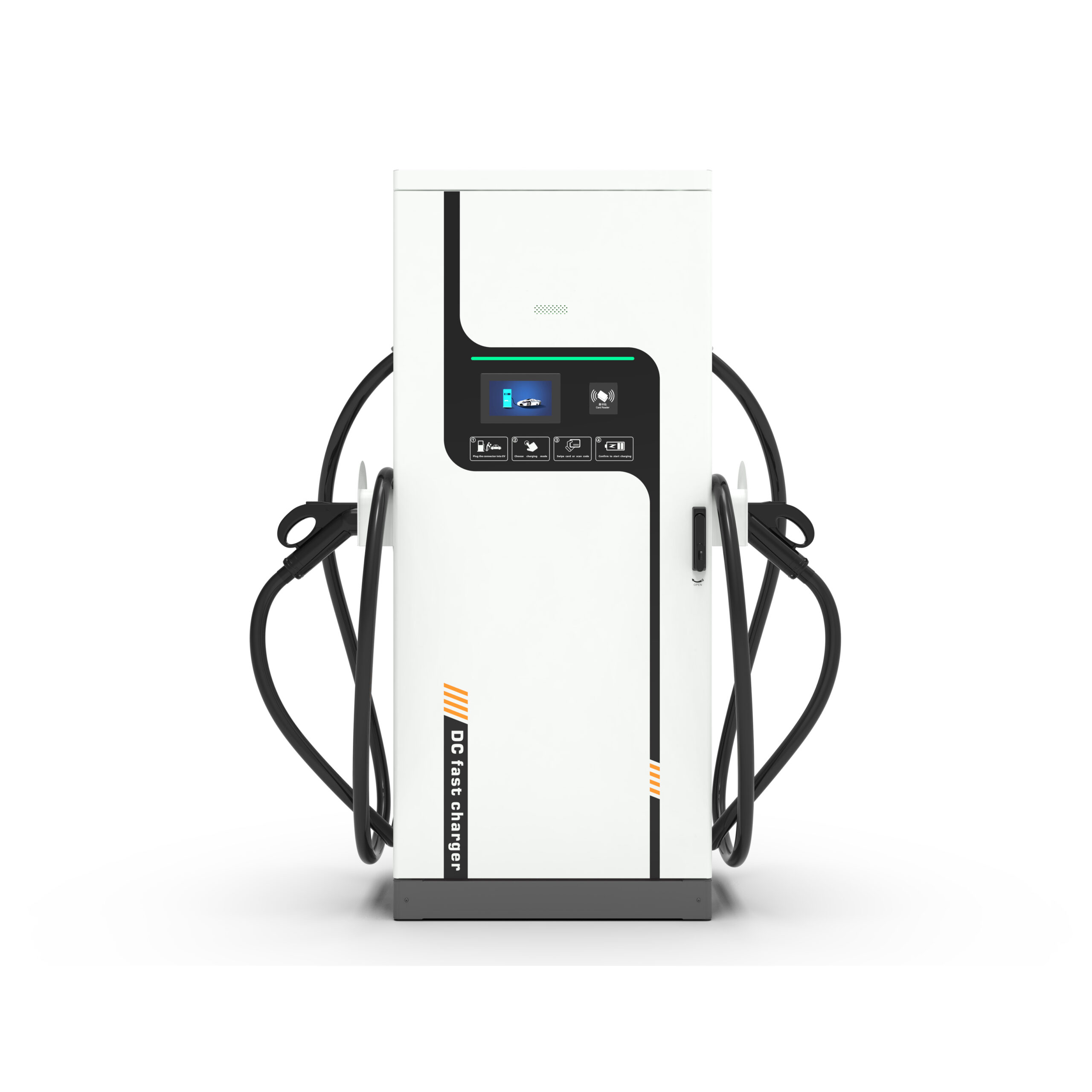

NX series 60-400kW GBT DC Charging Station (Low Noise)
Key features
- High reliability and performance
- Multiple protection functions for safety
- User-friendly design with intuitive interface
- Support for various communication methods
INTRODUCTION
The product features multiple protection functions, with dual safety measures for input and output, enabling real-time monitoring of the charging cable connection status to ensure the safety of individuals and vehicles during the charging process. Additionally, it excels in noise reduction.
The product can be optionally equipped with functions such as smoke sensing, water immersion detection, heating, and anti-tilt to enhance its performance. Personalized interface display and control guidance functions make charging operations more convenient. It provides various communication interfaces such as Ethernet and GPRS for real-time communication with monitoring centers and operational management centers, facilitating real- time monitoring of charging status.
PARAMETERS
| Rated power | 60kW | 80kW | 120kW | 160kW | 240kW | 400kW |
| Input voltage | 380VAC±15%,3P+N+PE | |||||
| Input frequency | 45Hz-65Hz | |||||
| Output Voltage range | 200-1000Vdc | |||||
| Output Constant power range | 300-1000Vdc | |||||
| Output Max current per connector | 200A | 250A | 250A | 250A | 250A | 250A |
| Operating temperature | -20 ～ +50°C | |||||
Download
60-400kW GBT DC Charger (Low Noise)
Details
INTRODUCTION
The product features multiple protection functions, with dual safety measures for input and output, enabling real-time monitoring of the charging cable connection status to ensure the safety of individuals and vehicles during the charging process. Additionally, it excels in noise reduction.
The product can be optionally equipped with functions such as smoke sensing, water immersion detection, heating, and anti-tilt to enhance its performance. Personalized interface display and control guidance functions make charging operations more convenient. It provides various communication interfaces such as Ethernet and GPRS for real-time communication with monitoring centers and operational management centers, facilitating real- time monitoring of charging status.
PARAMETERS
| Rated power | 60kW | 80kW | 120kW | 160kW | 240kW | 400kW |
| Input voltage | 380VAC±15%,3P+N+PE | |||||
| Input frequency | 45Hz-65Hz | |||||
| Output Voltage range | 200-1000Vdc | |||||
| Output Constant power range | 300-1000Vdc | |||||
| Output Max current per connector | 200A | 250A | 250A | 250A | 250A | 250A |
| Operating temperature | -20 ～ +50°C | |||||
Inquiry Now
