NX Series 360-960kW GBT Split DC Fast Charging Station
NX Series 360-960kW GBT Split DC Fast Charging Station
Key features
- Dynamic power distribution.
- Optional air-cooled and liquid-cooled terminals
- Multiple protection functions
- User-friendly interface
- Various communication methods
INTRODUCTION
The split-type DC charger is a new product independently developed based on years of R&D and operational experience in EV DC charger systems. It meets the high requirements for reliability, performance, and energy conservation and emission reductio, featuring high system stability and reliability.
PARAMETERS

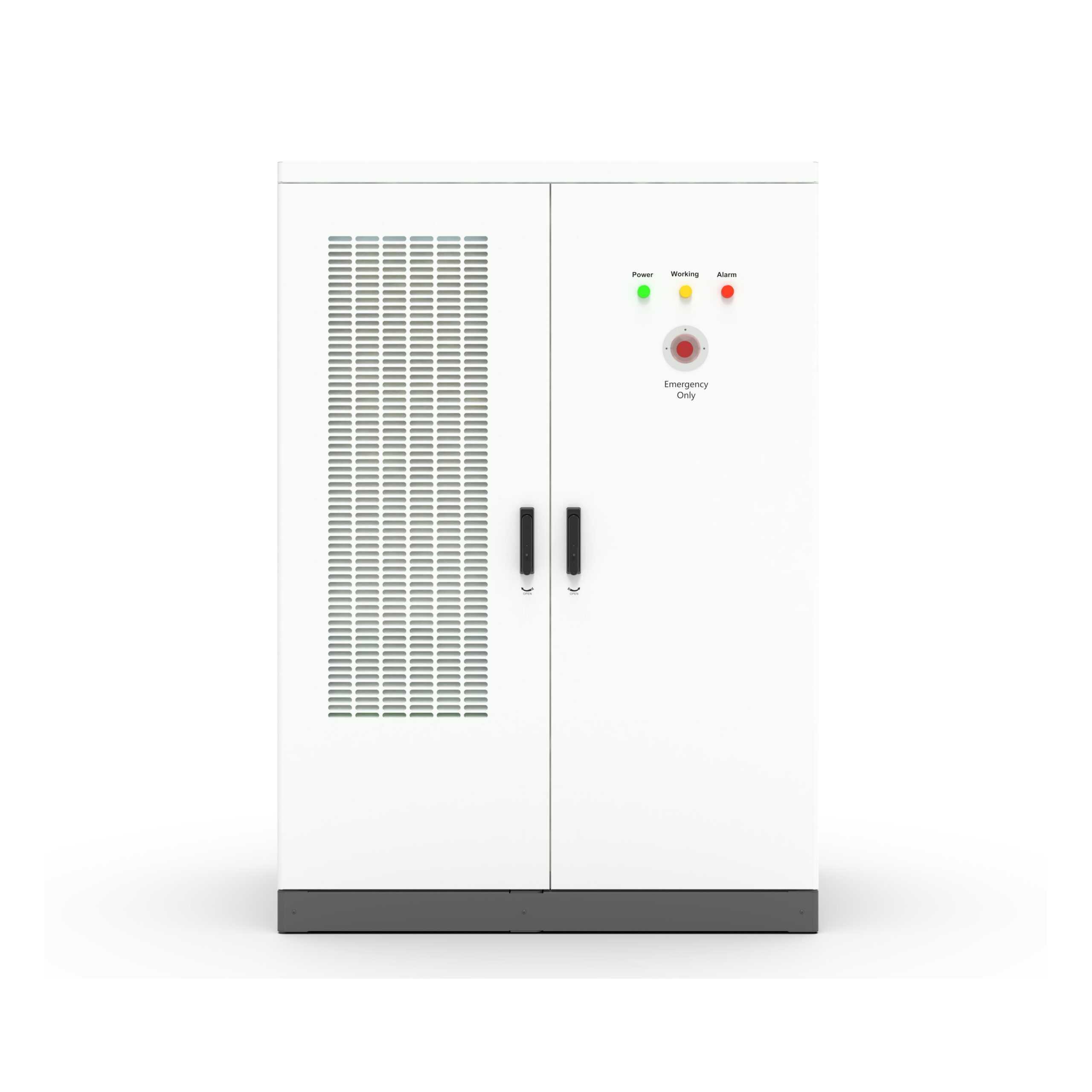

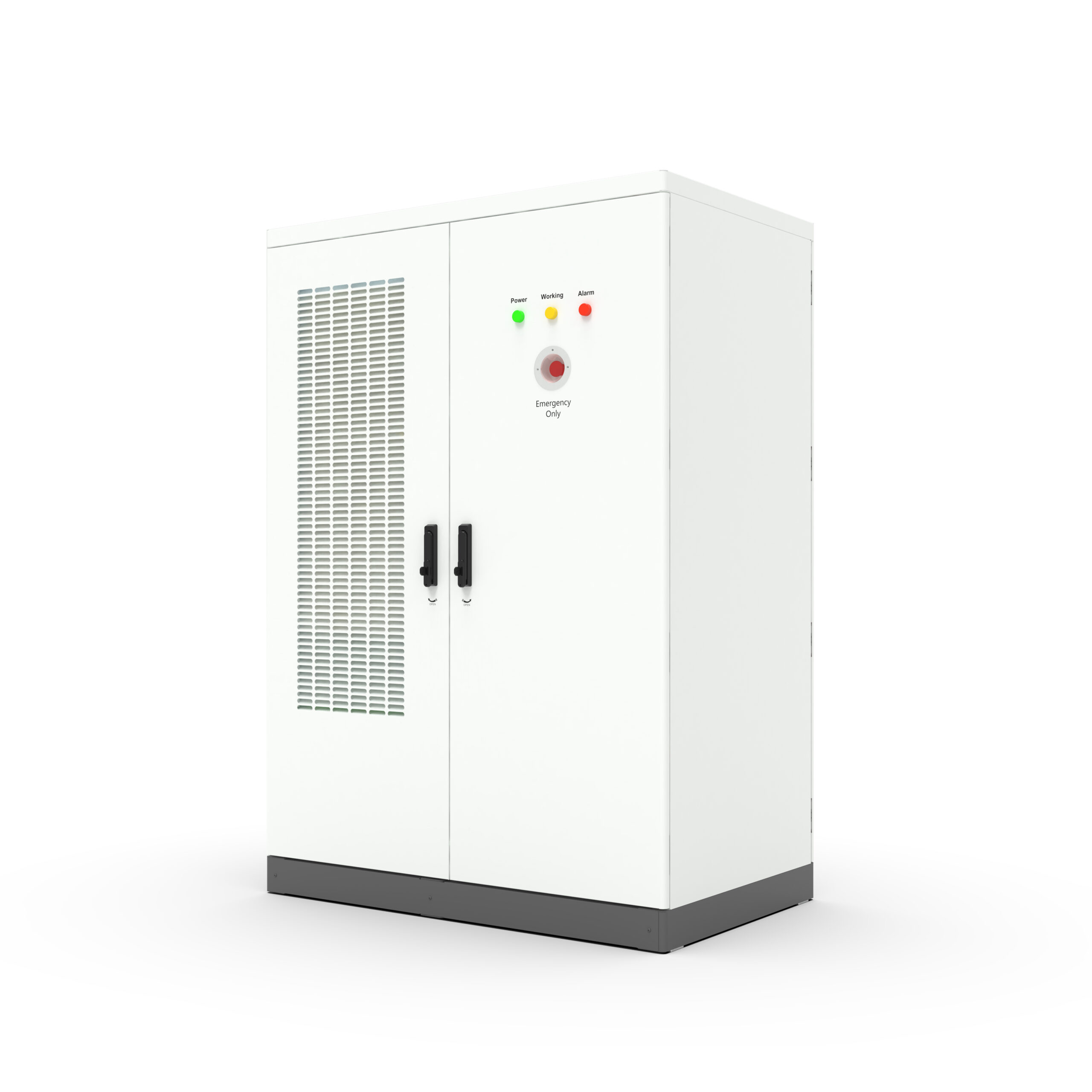

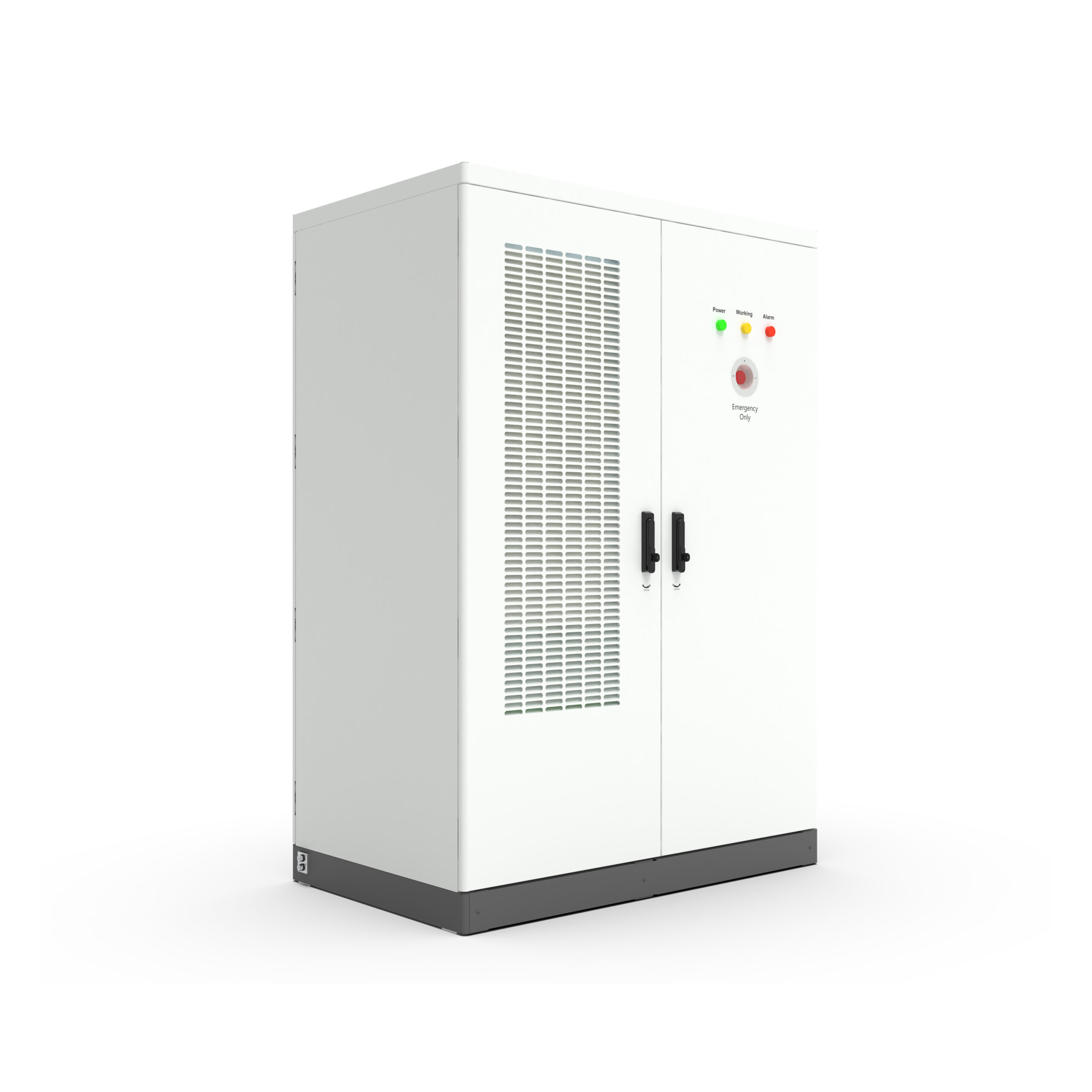

| POWER CABINET |
| Rated power | 360KW | 480KW | 640KW | 720KW | 960KW |
| Max number of access terminals | 6 | 12 | 12 | 12 | 24 |
| Cooling method | Forced air cooling | ||||
| Voltage | 380VAC±15%,3P+N+PE | ||||
| Ouput voltage | 200-1000Vdc | ||||
| Constant power range | 300-1000Vdc | ||||
| Operating temperature | -20 ～ +50°C | ||||
| Operating enviroment | Indoor or outdoor（IP54） | ||||
| CHARGING TERMINAL | ||
| Rated power | 600kW | 250kW |

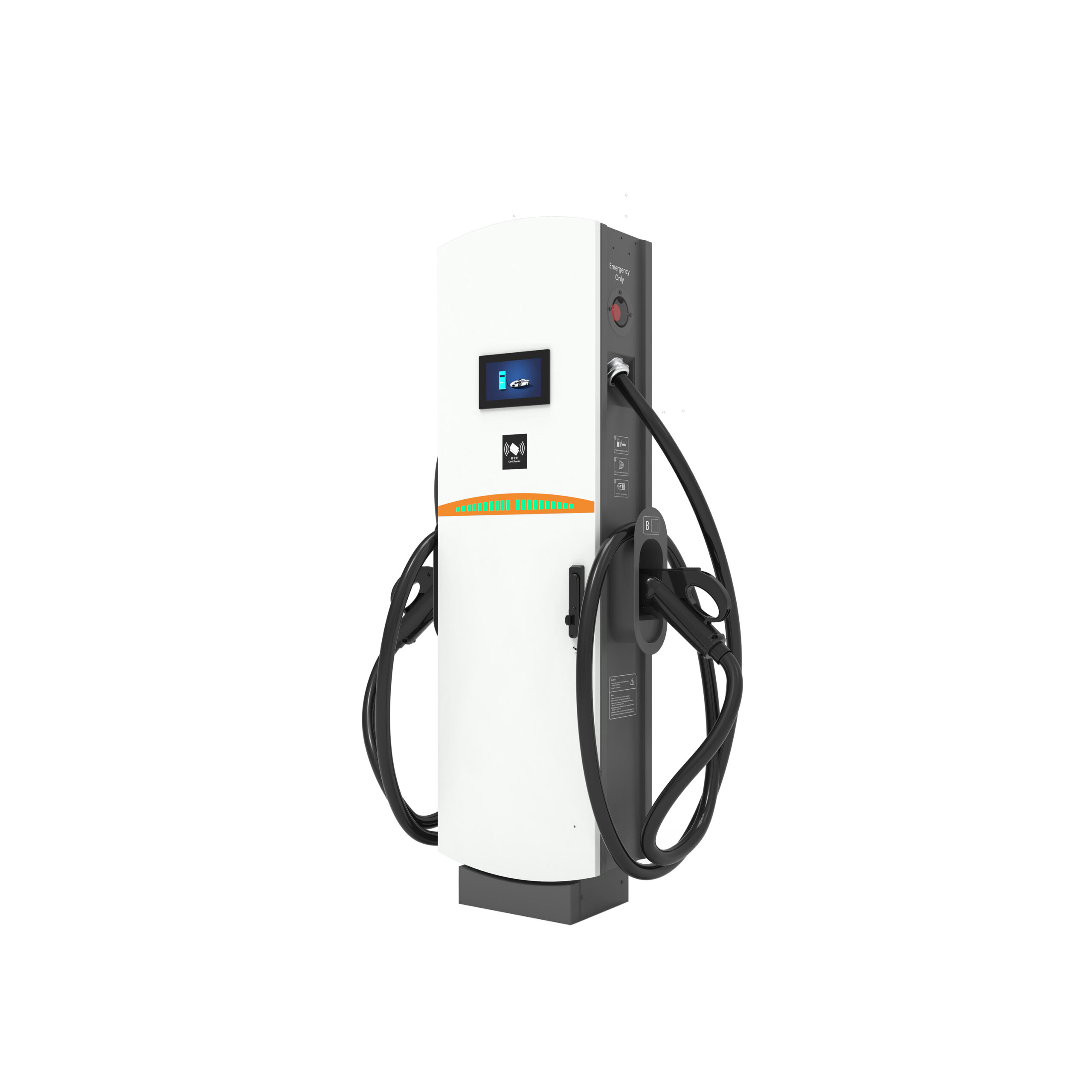

| Current range (air-cooling) | 0-250A per plug | |

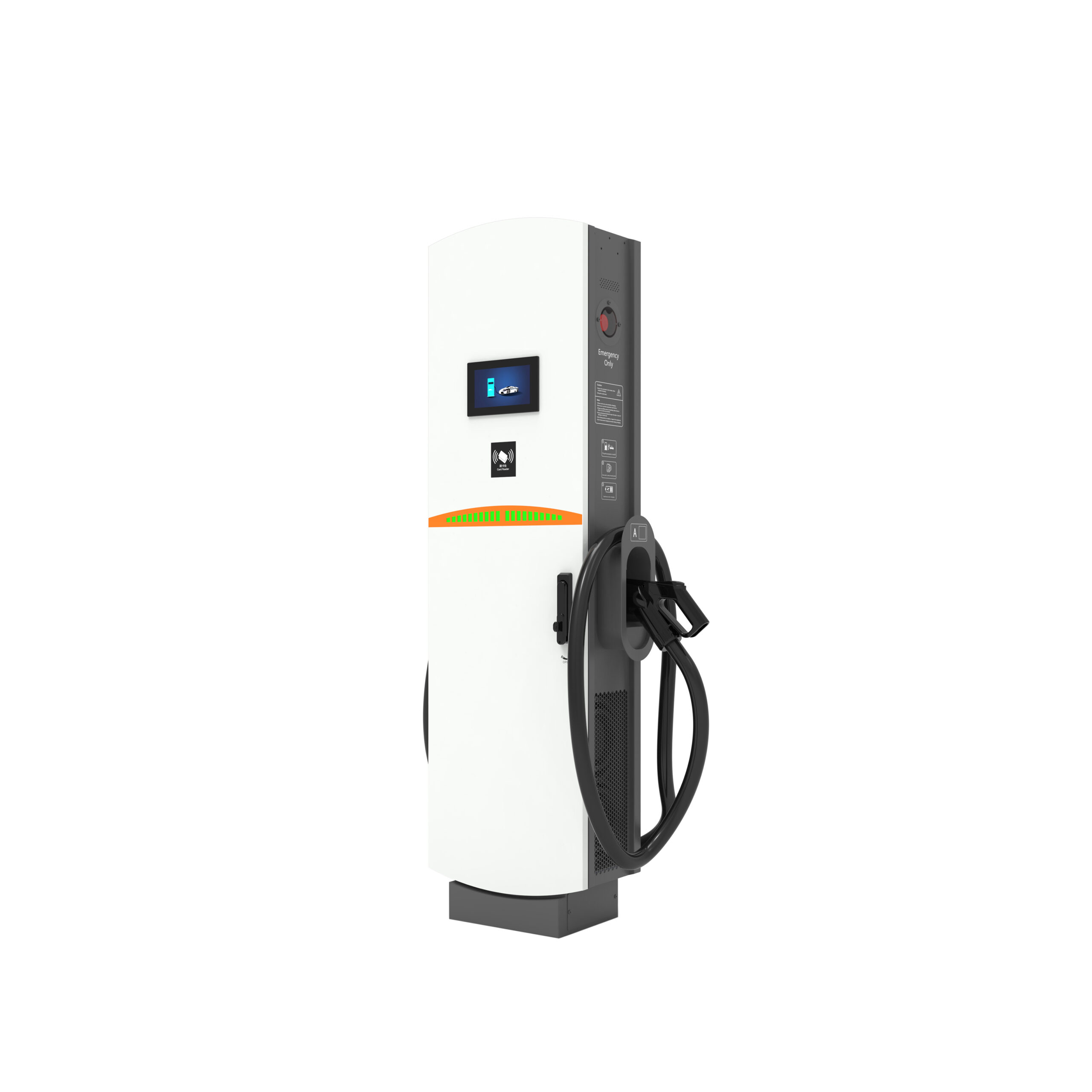

| Current range (liquid-cooling) | 0-600A per plug | |
| Output voltage | 200-1000Vdc | |
| Constant power range | 300-1000Vdc | |
| Operating temperature | -20 ～ +50°C | |
| Operating environment | Indoor or outdoor（IP54） | |
Download
360-960kW GBT Split Type Charger
Details
INTRODUCTION
The split-type DC charger is a new product independently developed based on years of R&D and operational experience in EV DC charger systems. It meets the high requirements for reliability, performance, and energy conservation and emission reductio, featuring high system stability and reliability.
PARAMETERS
| POWER CABINET |
| Rated power | 360KW | 480KW | 640KW | 720KW | 960KW |
| Max number of access terminals | 6 | 12 | 12 | 12 | 24 |
| Cooling method | Forced air cooling | ||||
| Voltage | 380VAC±15%,3P+N+PE | ||||
| Ouput voltage | 200-1000Vdc | ||||
| Constant power range | 300-1000Vdc | ||||
| Operating temperature | -20 ～ +50°C | ||||
| Operating enviroment | Indoor or outdoor（IP54） | ||||
| CHARGING TERMINAL | ||
| Rated power | 600kW | 250kW |
| Current range (air-cooling) | 0-250A per plug | |
| Current range (liquid-cooling) | 0-600A per plug | |
| Output voltage | 200-1000Vdc | |
| Constant power range | 300-1000Vdc | |
| Operating temperature | -20 ～ +50°C | |
| Operating environment | Indoor or outdoor（IP54） | |
