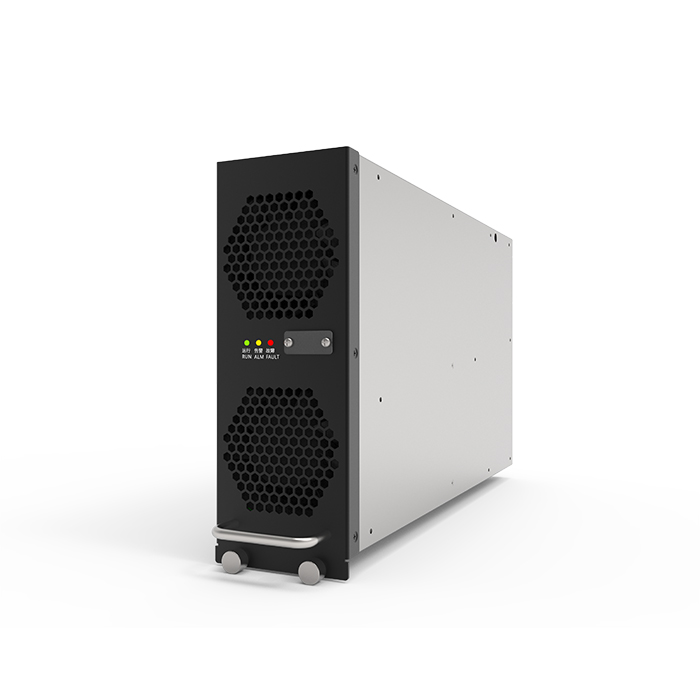

NXREC01-20kW 750V DC Charging Module
Key features
- Wide output voltage, 50~750Vdc, suitable for different types EVs
- Ultra low standby power consumption
- Full-power working temperaturefrom -40 to 60℃
- Full-load working efficiency ≥ 95.5%
INTRODUCTION
NXREC01 is a charging power module designed to overcome the bottleneck of charging station industry with prominent advantages of ultra-high full load working temperature and ultra-wide constant power range in the industry. At the same time, key features of this module include high reliability, high efficiency, high power factor, high power density, wide output voltage range, wide temperature range and low standby power consumption.
ADVANTAGES
- Provide full power under 60℃ ambient temperature, ensuring fast charging speed in high temperature environment.
- Wide output voltage range of 50-750Vdc, and maintains a constant power output of 20kW across the entire range from 400V to 750Vdc, satisfying the charging needs for both buses and passenger cars.
PARAMETERS
| Input Voltage | 285Vac～475Vac,Three phase+PE |
| Input Current | <40A |
| Output Power | 20kW@output voltage≥400Vdc |
| Output Voltage Range | 50Vdc～750Vdc，defaut value：200Vdc |
| Output Current Range | 0A～50A |
| Dimensions | 84mm（H）×226mm（W）×390mm（D） |
| Weight | ≤11kg |
Download
NXREC01 Power Module Data Sheet
Details
INTRODUCTION
NXREC01 is a charging power module designed to overcome the bottleneck of charging station industry with prominent advantages of ultra-high full load working temperature and ultra-wide constant power range in the industry. At the same time, key features of this module include high reliability, high efficiency, high power factor, high power density, wide output voltage range, wide temperature range and low standby power consumption.
ADVANTAGES
- Provide full power under 60℃ ambient temperature, ensuring fast charging speed in high temperature environment.
- Wide output voltage range of 50-750Vdc, and maintains a constant power output of 20kW across the entire range from 400V to 750Vdc, satisfying the charging needs for both buses and passenger cars.
PARAMETERS
| Input Voltage | 285Vac～475Vac,Three phase+PE |
| Input Current | <40A |
| Output Power | 20kW@output voltage≥400Vdc |
| Output Voltage Range | 50Vdc～750Vdc，defaut value：200Vdc |
| Output Current Range | 0A～50A |
| Dimensions | 84mm（H）×226mm（W）×390mm（D） |
| Weight | ≤11kg |
