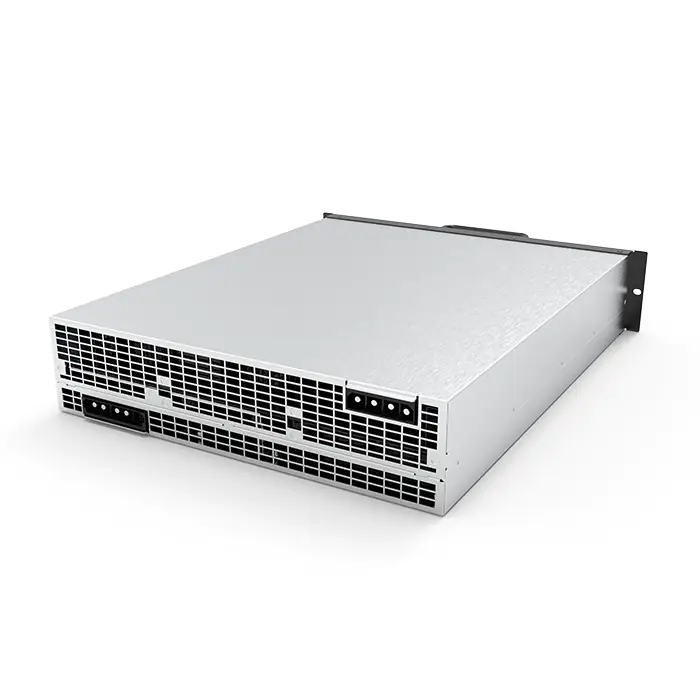

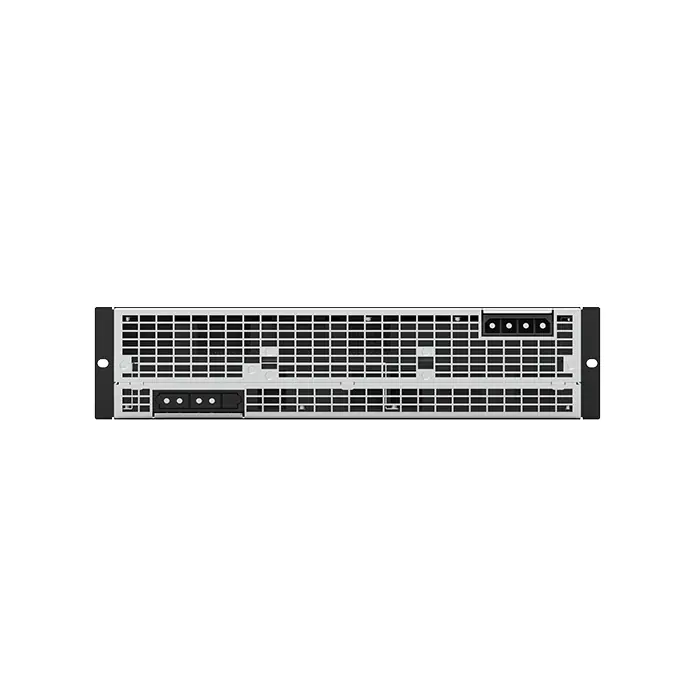

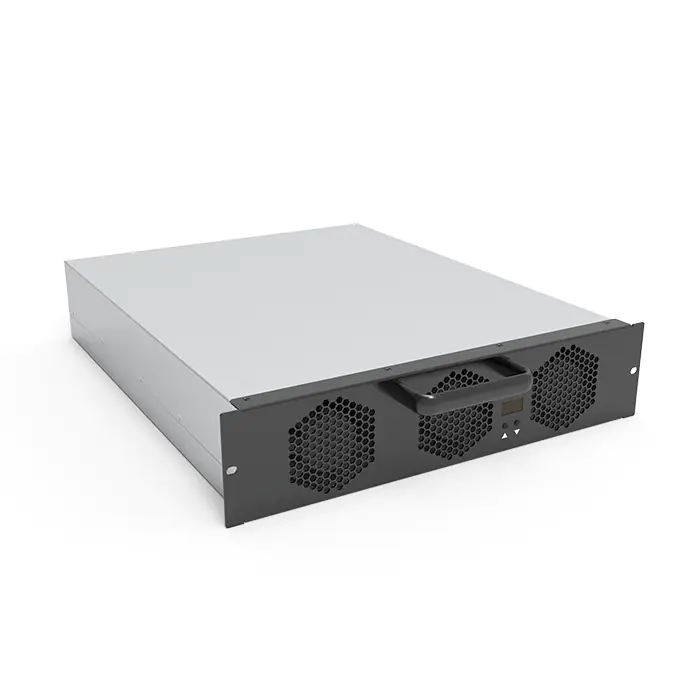

UXR100030B-30kW 1000V DC Charging Module
Key features
- Ultra wide output voltageof 100~1000Vdc, suitable for different types EVs
- Ultra high output power under 300V~1000V output voltage, 30KW constant power output
- Full-power wide working temperaturefrom -40 to 55℃
- Full-load working efficiency ≥ 95.5%
INTRODUCTION
The UXR10030B EV charging module is a 30kW power module for EV charger designed to overcome the bottleneck of charging station industry with prominent advantages of ultra-high full load working temperature and ultra-wide constant power range in the industry. Combine with the latest EV charging technology, key features of this 30kW EV dc charger module include high reliability, high efficiency, high power factor, high power density, wide output voltage range, low noise, low standby power consumption and good EMC performance. Check out the details of this EV charging module below.
ADVANTAGES
- Ultra-wide output voltage range,suitable for a wide range of EVs.
- UXR100030B offers output range of 100-1000V, delivering 30kW constant power from 300V to 1000V, setting an industry standard for ultra-wide voltage and power ranges.
- Higher protection for high-voltage components inside the module to improve adaptability and reliability.
- Electromagnetic compatibility conforms to Class B exhibiting minimal electromagnetic radiation and robust resistance to interference.
PARAMETERS
| Input Voltage | 260Vac～530Vac,3-Phase+PE |
| Input Current | 58A Max |
| Output Power | 30kW@output voltage≥300Vdc |
| Output Voltage Range | 100Vdc～1000Vdc |
| Output Current Range | 0A～100A |
| Dimensions | 85mm（H）×360mm（W）×459mm（D） |
| Weight | ≤ 20 kg |
FAQs of the 30kW EV DC Charger Module
- What is the difference between the UXR100030B-30kW 1000V DC EV charging moduleand the UXR100040B-40kW 1000V DC EV charging module?
The main difference between these two EV charging modules lies in their power output capacities. The UXR100030B has a constant power output of 30KW, whereas the UXR100040B offers a higher constant power output of 40KW. This means that the UXR100040B can deliver more power, potentially resulting in faster charging times for electric vehicles.
- What installation requirements should I consider when implementing this 30kW EV DC Charger Module
This 30kW power module for EV charger requires an input voltage of 260Vac to 530Vac (three-phase + PE) and can handle input currents of up to 58A max. With its compact dimensions (85mm (H) × 360mm (W) × 459mm (D)) and lightweight design (≤ 20 kg), installation is straightforward and can be easily integrated into existing or new fast charging station installations.
Download
UXR100030B Power Module Data Sheet
Details
INTRODUCTION
The UXR10030B EV charging module is a 30kW power module for EV charger designed to overcome the bottleneck of charging station industry with prominent advantages of ultra-high full load working temperature and ultra-wide constant power range in the industry. Combine with the latest EV charging technology, key features of this 30kW EV dc charger module include high reliability, high efficiency, high power factor, high power density, wide output voltage range, low noise, low standby power consumption and good EMC performance. Check out the details of this EV charging module below.
ADVANTAGES
- Ultra-wide output voltage range,suitable for a wide range of EVs.
- UXR100030B offers output range of 100-1000V, delivering 30kW constant power from 300V to 1000V, setting an industry standard for ultra-wide voltage and power ranges.
- Higher protection for high-voltage components inside the module to improve adaptability and reliability.
- Electromagnetic compatibility conforms to Class B exhibiting minimal electromagnetic radiation and robust resistance to interference.
PARAMETERS
| Input Voltage | 260Vac～530Vac,3-Phase+PE |
| Input Current | 58A Max |
| Output Power | 30kW@output voltage≥300Vdc |
| Output Voltage Range | 100Vdc～1000Vdc |
| Output Current Range | 0A～100A |
| Dimensions | 85mm（H）×360mm（W）×459mm（D） |
| Weight | ≤ 20 kg |
FAQs of the 30kW EV DC Charger Module
- What is the difference between the UXR100030B-30kW 1000V DC EV charging moduleand the UXR100040B-40kW 1000V DC EV charging module?
The main difference between these two EV charging modules lies in their power output capacities. The UXR100030B has a constant power output of 30KW, whereas the UXR100040B offers a higher constant power output of 40KW. This means that the UXR100040B can deliver more power, potentially resulting in faster charging times for electric vehicles.
- What installation requirements should I consider when implementing this 30kW EV DC Charger Module
This 30kW power module for EV charger requires an input voltage of 260Vac to 530Vac (three-phase + PE) and can handle input currents of up to 58A max. With its compact dimensions (85mm (H) × 360mm (W) × 459mm (D)) and lightweight design (≤ 20 kg), installation is straightforward and can be easily integrated into existing or new fast charging station installations.
