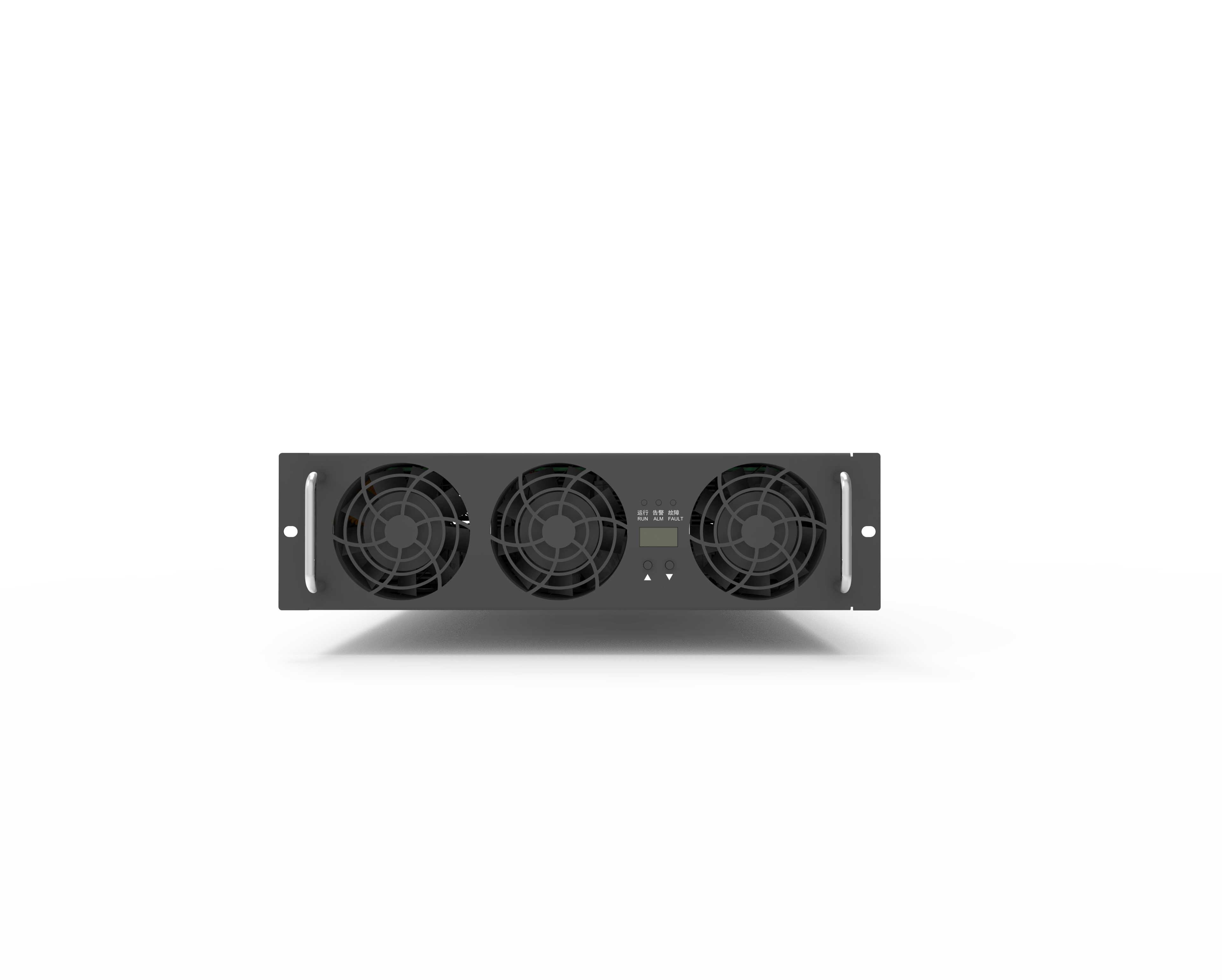

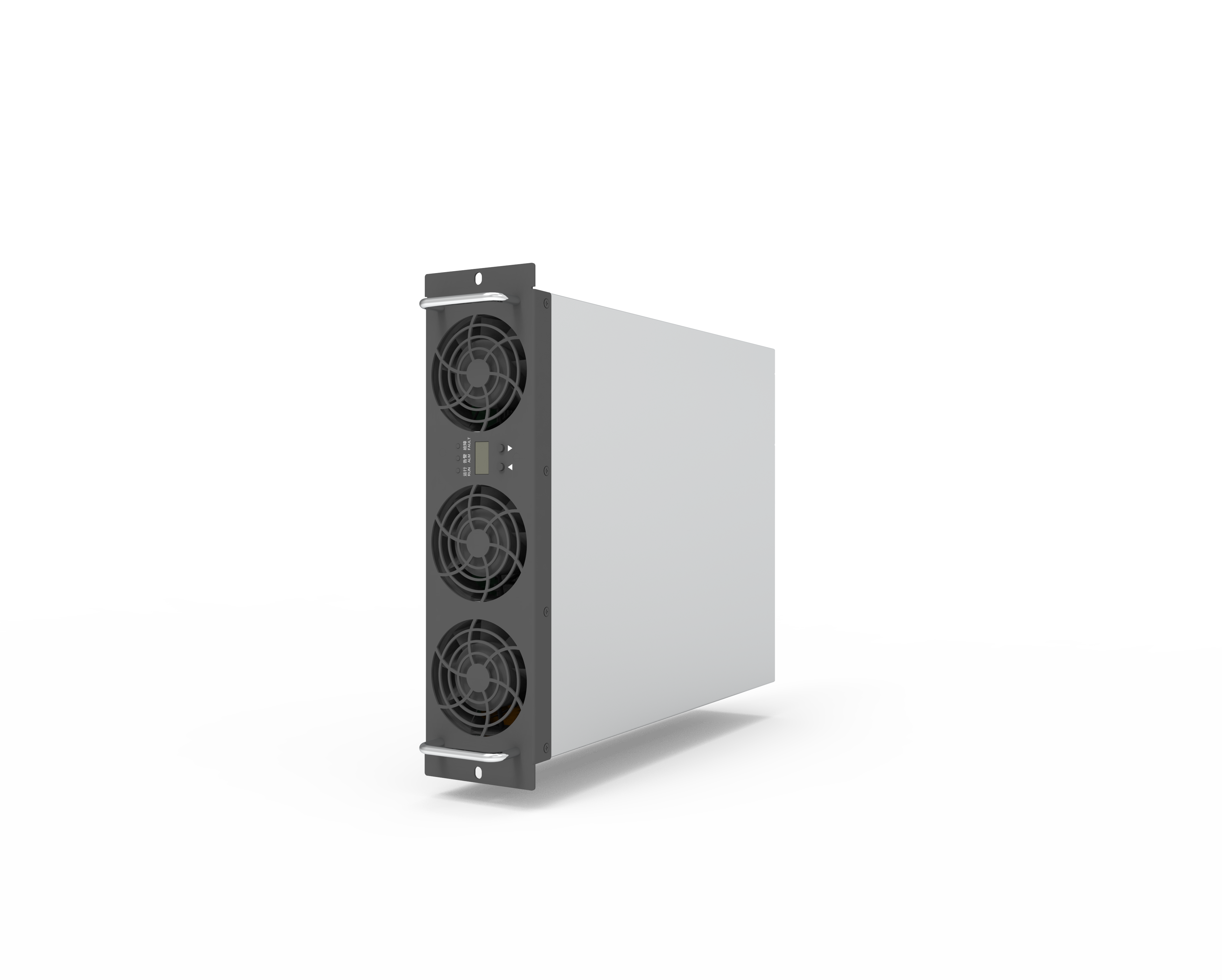

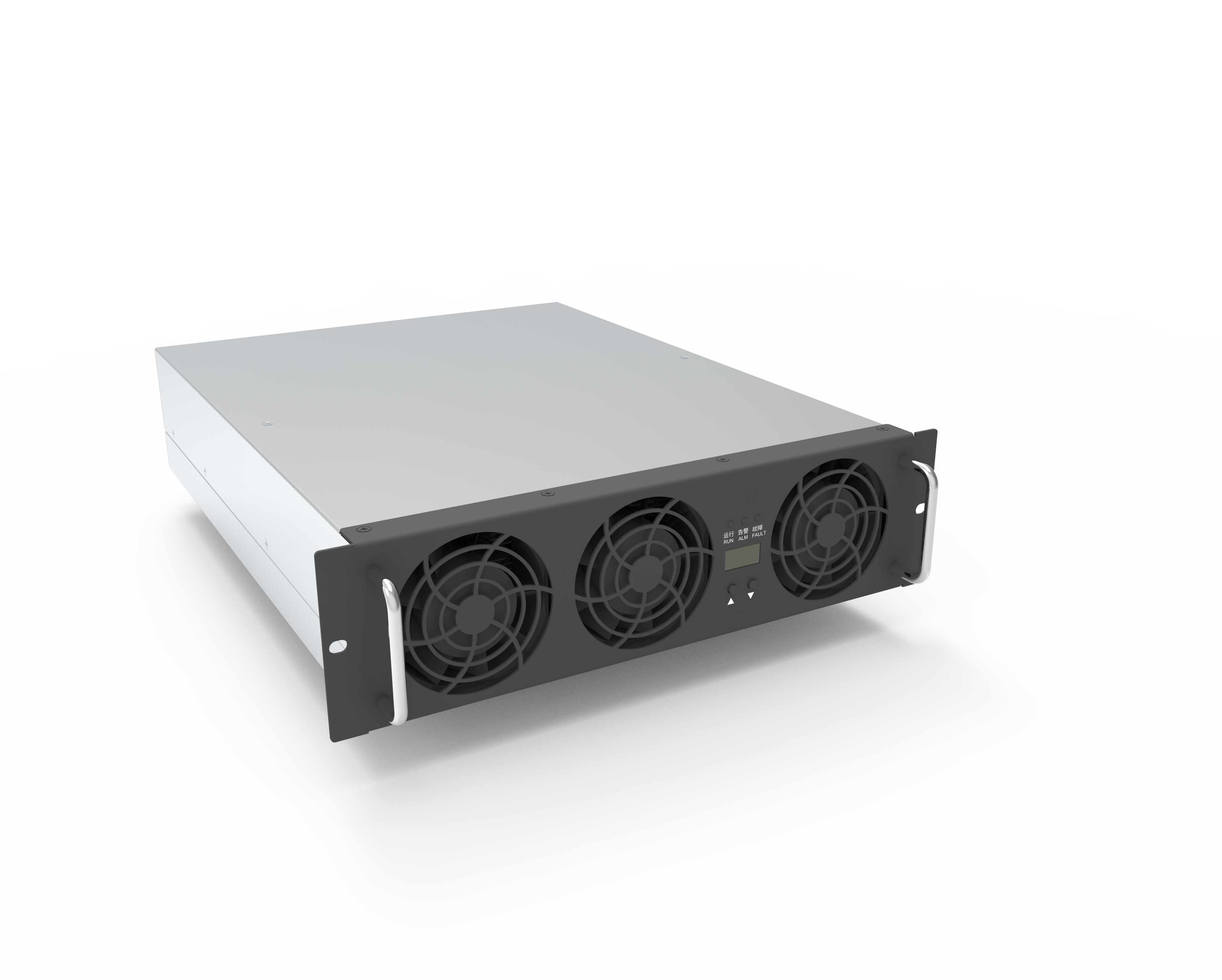

UXG1K022-22kW Bidirectional AC-DC (V2G) Charge-discharge Module
Key features:
- Wide working output voltage: 260V~530V for AC side,200V~1000V for DC side
- Support bidirectional energy flow between the battery and the grid
- Dual DSP design enables full digital control
- High power density of 36W/in³
INTRODUCTION
UXG1K022 is a bidirectional AC/DC charge-discharge module, featuring a wide constant powervoltage range, high efficiency, high power factor, high power density, low electromagnetic radiation and interference, and high reliability. It can be widely used in applications such as Vehicle-to-Grid (V2G), energy storage, retired battery secondary utilization, and production testing equipment.
ADVANTANGES
- AC side voltage range of 260-530Vac with a frequency range of 45-65Hz, adaptable to various grid environments.
- DC side voltage range of 200-1000Vdc, meet the rapid charge and discharge requirements of various electric vehicles and battery packs.
- Wide constant power operating range of 300-1000Vdc, suitable for fast charging and discharging in low-voltage scenarios.
- Meet requirements for CE and UL certifications.EMC Meets Class B requirements of EN61000-6-1 and EN61000-6-3 standards, with low electromagnetic radiation and strong anti-interference capability.
- Conversion efficiency of 97.5%, promoting energy conservation and environmental protection.
PARAMETERS
| AC Side -Rectified/on-grid | Voltage Range | 260Vac-530vac |
| Rated Voltage | 380Vac | |
| Rated Current | 33A | |
| AC Side -off-grid | Voltage Range | 380Vac |
| Rated Current | 33A | |
| DC Side | Voltage Range | 200Vdc-1000vdc |
| Current Range | 0-73.3A, current limiting point adjustable | |
| Rated Current | 22A @1000V | |
| Dimensions | 85mm（H）×300mm（W）×395mm（D） | |
| Weight | 14kg |
Download
UXG1K022 Power Module Data Sheet
Details
INTRODUCTION
UXG1K022 is a bidirectional AC/DC charge-discharge module, featuring a wide constant powervoltage range, high efficiency, high power factor, high power density, low electromagnetic radiation and interference, and high reliability. It can be widely used in applications such as Vehicle-to-Grid (V2G), energy storage, retired battery secondary utilization, and production testing equipment.
ADVANTANGES
- AC side voltage range of 260-530Vac with a frequency range of 45-65Hz, adaptable to various grid environments.
- DC side voltage range of 200-1000Vdc, meet the rapid charge and discharge requirements of various electric vehicles and battery packs.
- Wide constant power operating range of 300-1000Vdc, suitable for fast charging and discharging in low-voltage scenarios.
- Meet requirements for CE and UL certifications.EMC Meets Class B requirements of EN61000-6-1 and EN61000-6-3 standards, with low electromagnetic radiation and strong anti-interference capability.
- Conversion efficiency of 97.5%, promoting energy conservation and environmental protection.
PARAMETERS
| AC Side -Rectified/on-grid | Voltage Range | 260Vac-530vac |
| Rated Voltage | 380Vac | |
| Rated Current | 33A | |
| AC Side -off-grid | Voltage Range | 380Vac |
| Rated Current | 33A | |
| DC Side | Voltage Range | 200Vdc-1000vdc |
| Current Range | 0-73.3A, current limiting point adjustable | |
| Rated Current | 22A @1000V | |
| Dimensions | 85mm（H）×300mm（W）×395mm（D） | |
| Weight | 14kg |
