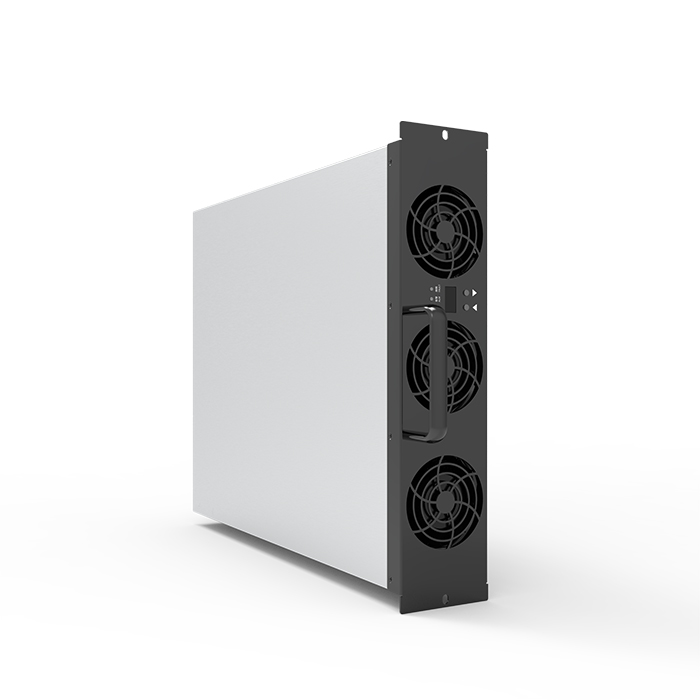

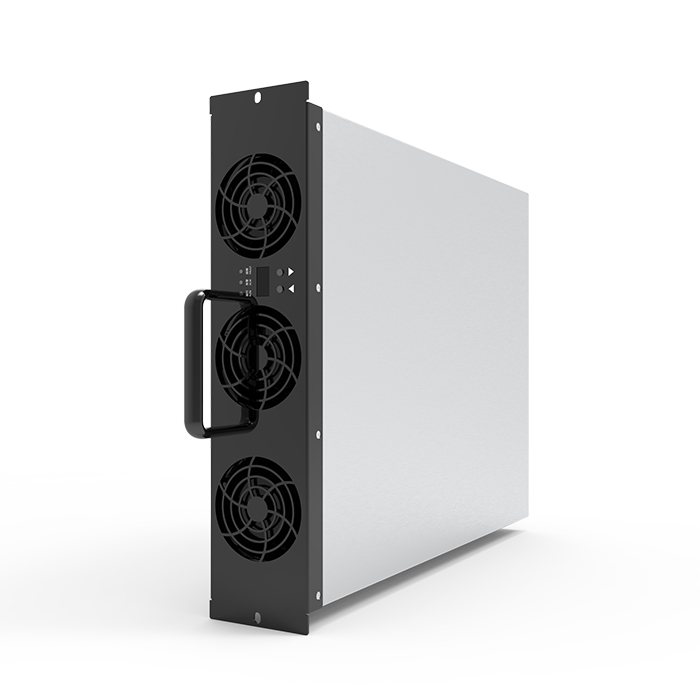

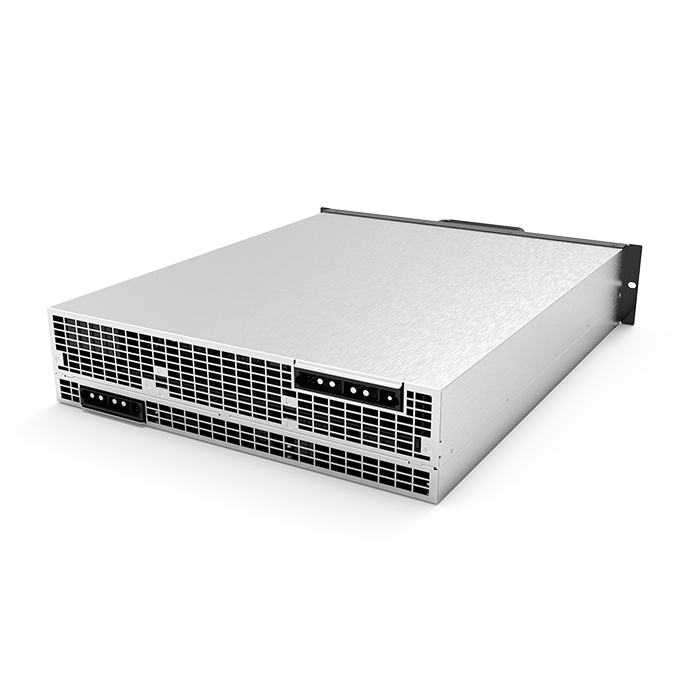

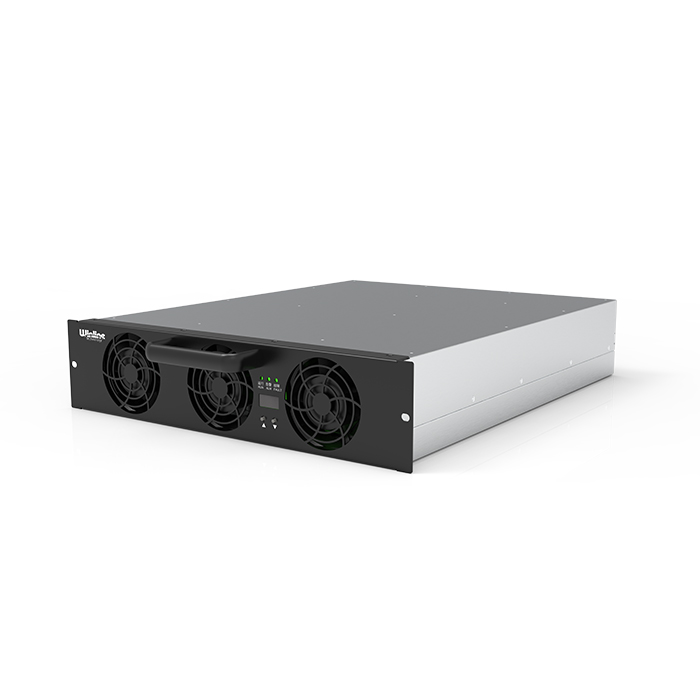

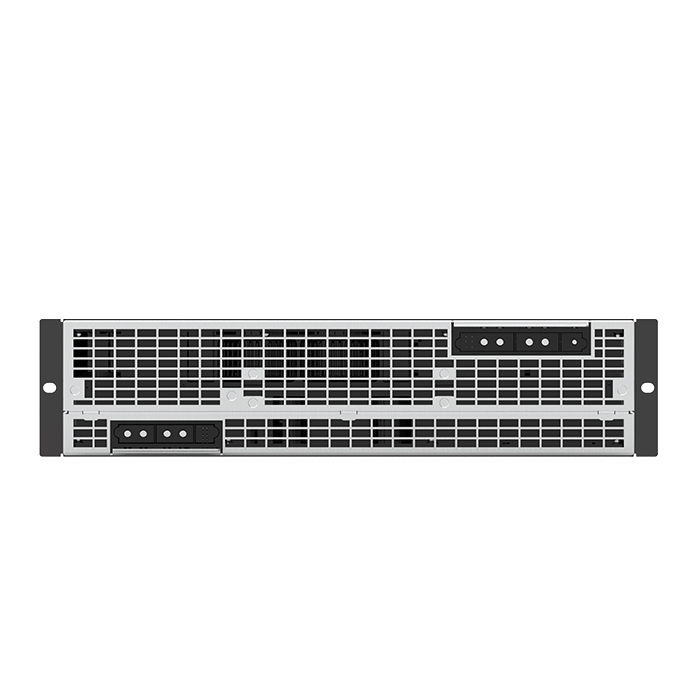

UXC100040-40kW 1000V Isolate Unidirectional DC-DC Charging Module
- Well protection with a semi-independent airflow design
- Wide input constant power from 500 to 850Vdc
- Ultra-wide output voltage range of 50-1000Vdc
- EMC Class B
- Full load efficiency>97.5%
INTRODUCTION
UXC100040 is a high-power isolation unidirectional DC-DC charging module, with ultra wide input and output voltage range, ultra-wide input and output voltage constant power range, but also has the characteristics of high protection, high efficiency. The product is widely applied in scenarios such as integrated PV energy storage charging stations, multi-vehicle DC charging stations, wind/solar energy primary stage conversion (MPPT), mobile robot charging, retired battery secondary utilization, and mobile charging vehicles.
ADVANTAGES
- Operating efficiently across the entire load range, with a full load efficiency of up to 97.5%, saving energy and lowering operational expenses.
- UXC100040 has an output voltage range of 50-1000Vdc. Its exceptionally wide voltage range makes it suitable for a variety of charging scenarios, meeting the fast charging needs of various EVs and battery packs.
- Complies with the IEC-61851-21 standard for EMC Class B, low electromagnetic radiation and strong anti-interference capability.
- MPPT function enhances energy efficiency, boosts system reliability, and prolongs module lifespan.
PARAMETERS
| Input Voltage | 200Vdc～850Vdc, DC input +PE |
| Input Current | <110A |
| Output Power | 40KW |
| Output Voltage Range | 50Vdc～1000Vdc |
| Output Current Range | 0A～133.3A |
| Dimensions | 85mm（H）×360mm（W）×459mm（D） |
| Weight | ≤ 20 kg |
Download
UXC100040 Power Module Data Sheet
Details
INTRODUCTION
UXC100040 is a high-power isolation unidirectional DC-DC charging module, with ultra wide input and output voltage range, ultra-wide input and output voltage constant power range, but also has the characteristics of high protection, high efficiency. The product is widely applied in scenarios such as integrated PV energy storage charging stations, multi-vehicle DC charging stations, wind/solar energy primary stage conversion (MPPT), mobile robot charging, retired battery secondary utilization, and mobile charging vehicles.
ADVANTAGES
- Operating efficiently across the entire load range, with a full load efficiency of up to 97.5%, saving energy and lowering operational expenses.
- UXC100040 has an output voltage range of 50-1000Vdc. Its exceptionally wide voltage range makes it suitable for a variety of charging scenarios, meeting the fast charging needs of various EVs and battery packs.
- Complies with the IEC-61851-21 standard for EMC Class B, low electromagnetic radiation and strong anti-interference capability.
- MPPT function enhances energy efficiency, boosts system reliability, and prolongs module lifespan.
PARAMETERS
| Input Voltage | 200Vdc～850Vdc, DC input +PE |
| Input Current | <110A |
| Output Power | 40KW |
| Output Voltage Range | 50Vdc～1000Vdc |
| Output Current Range | 0A～133.3A |
| Dimensions | 85mm（H）×360mm（W）×459mm（D） |
| Weight | ≤ 20 kg |
