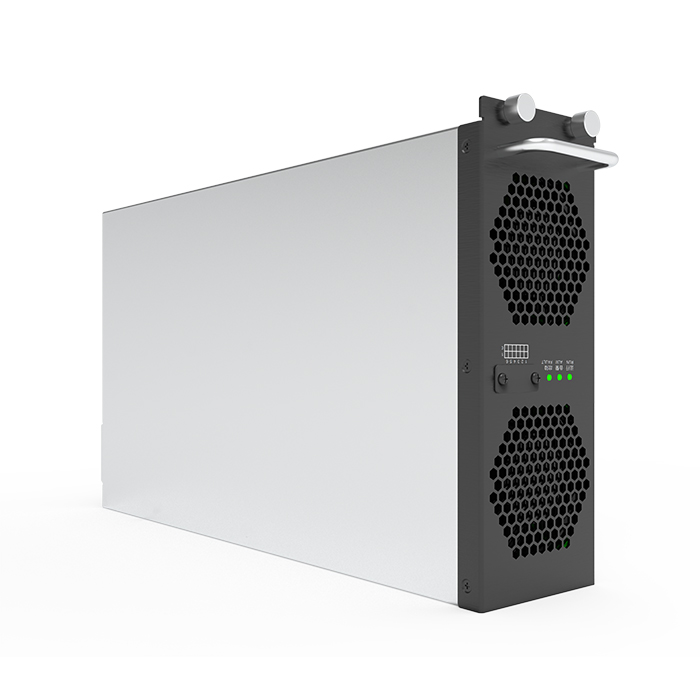

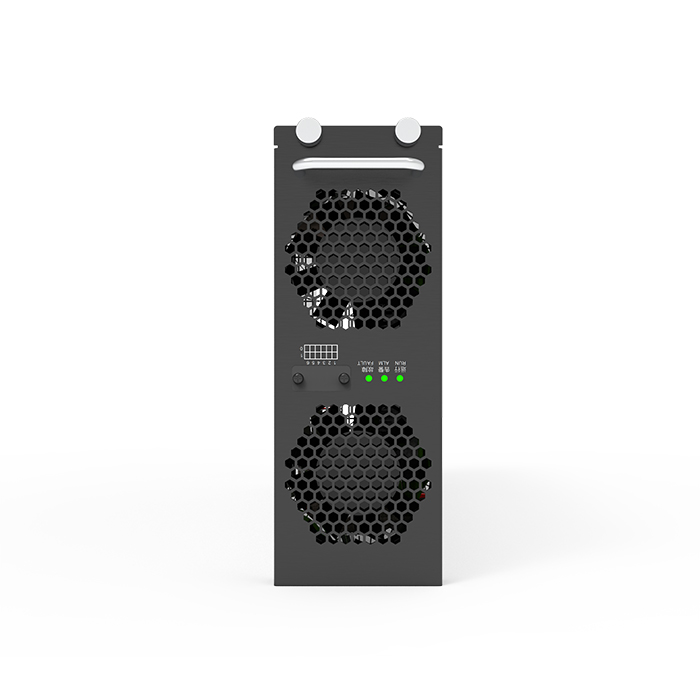

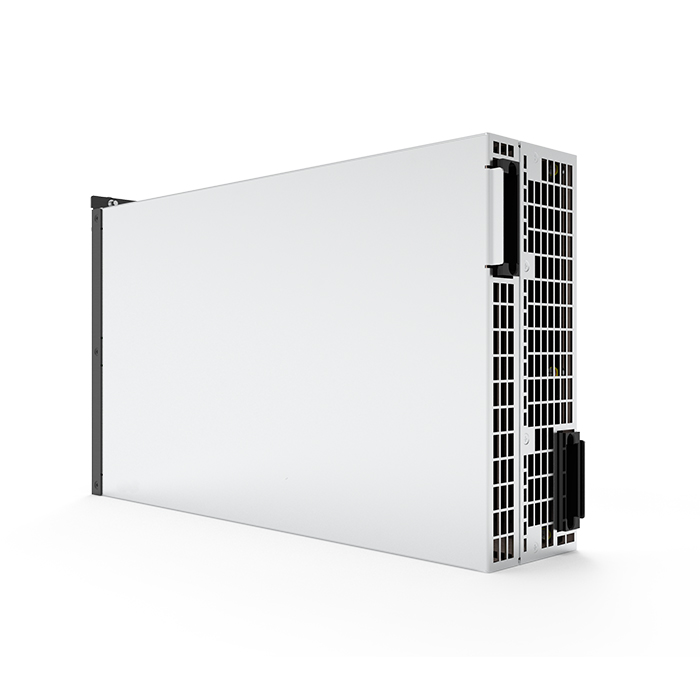

NXR1K020H-20kW 1000V DC Charging Module
Key features
- Wide output voltage of 500~1000Vdc, suitable for different types EVs
- Ultra low standby power consumption
- Full-power working temperature from -40 to 60℃;
- Full-load working efficiency≥ 5%
INTRODUCTION
NXR1K020H is a charging module designed to overcome the bottleneck of charging station industry with prominent advantages of ultra-high full load working temperature and ultra-wide constant power range in the industry. At the same time, key features of this module include high reliability, high efficiency, high power factor, high power density, wide output voltage range, low noise, low standby power consumption and good EMC performance.
ADVANTAGES
- Provide full power under 60℃ ambient temperature, ensuring fast charging speed in high temperature environment.
- Wide output voltage range of 50-1000Vdc, and maintains a constant power output of 20kW across the entire range from 300V to 1000V. Its exceptionally wide constant power output range sets an industry-leading standard among charging modules of similar size.
PARAMETERS
| Dimensions | 85mm（H）×226mm（W）×390mm（D） |
| Weight | ≤11kg |
| Input Voltage | 285Vac～475Vac,Three phase+PE |
| Input Current | <40A |
| Output Power | 20kW@output voltage≥300Vdc |
| Output Voltage Range | 50V～1000Vdc |
| Output Current Range | 0A～67A |
Download
NXR1K020H Power Module Data Sheet
Details
INTRODUCTION
NXR1K020H is a charging module designed to overcome the bottleneck of charging station industry with prominent advantages of ultra-high full load working temperature and ultra-wide constant power range in the industry. At the same time, key features of this module include high reliability, high efficiency, high power factor, high power density, wide output voltage range, low noise, low standby power consumption and good EMC performance.
ADVANTAGES
- Provide full power under 60℃ ambient temperature, ensuring fast charging speed in high temperature environment.
- Wide output voltage range of 50-1000Vdc, and maintains a constant power output of 20kW across the entire range from 300V to 1000V. Its exceptionally wide constant power output range sets an industry-leading standard among charging modules of similar size.
PARAMETERS
| Dimensions | 85mm（H）×226mm（W）×390mm（D） |
| Weight | ≤11kg |
| Input Voltage | 285Vac～475Vac,Three phase+PE |
| Input Current | <40A |
| Output Power | 20kW@output voltage≥300Vdc |
| Output Voltage Range | 50V～1000Vdc |
| Output Current Range | 0A～67A |
